Product Features

Screen : 7-inches IPS Screen with fast response speed, wide viewing angles, true colors, resolution of 1024 x 600.
Video Input: Supports 2 channels of video inpu.
Setting Functions: OSD menu allows for image mirroring, normal image, delay time, and dual-trigger priority settings.
Appearance Design: Patented independent design with high-temperature resistant ABS+PC housing.
Sunshade Design: Detachable sunshade to prevent sunlight interference.
Bracket Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.
Brightness: High brightness of 600cd/㎡ for clear images.
Voltage Protection: Protects against vehicle transient pulses with a load-dump pulse voltage of DC24V+174V (350ms).
Power Design: Energy-efficient independent power supply with a wide operating voltage range of DC11~32V.
Protection Mechanism: Built-in protection against external power polarity reversal and LED thermal response constant current and voltage protection.

Performance and Features:
- Automotive-grade DSP, 2-megapixel high-definition.
- IP69K waterproof rating.
- IR LED night vision function.
- Cold-resistant waterproof signal output cable.

Features:
- 4-core phosphor bronze aviation head with dual shielding.
- Excellent anti-interference performance, low impedance, minimal signal transmission attenuation.
- Aviation head with dual molded end, excellent tensile and swing extension properties.

Product Parameters

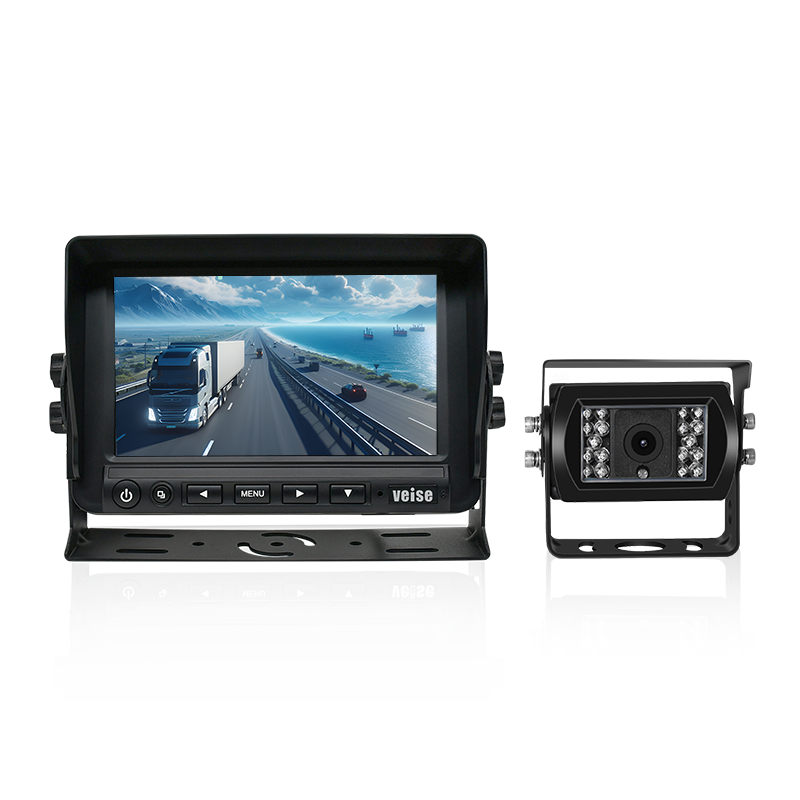

HD Camera Monitor (MHD-771)
Color Monitor Screen	7-inch IPS screen
Resolution	1024 x 600
Video Input	Max. support 2CH AHD1080P/ 720P /CVBS video signals
Picture Mode	Single channel switching
TV system	PAL/NTSC (AUTO)
Brightness	600 (cd/㎡)
Load Dump	ISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration Rating	GB∕T 2423.56-2023 standard (random 5G vibration)
Working Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Working Voltage	DC11-32V
Dimension	(L x W x T) (216 x 150 x 80mm)
HD Rear View Camera(CHD-102Z)
Effective Pixel	1920 x 1080
Definition	1080P
Visible Angle	130°
Infrared Distance	15 meters (Buit-in 6 850nm infrared lights）
Waterproof Rating	IP69K
Working Voltage	DC12V±10%（be powered by the monitor）
Working Temperature	-20℃ to +60℃
Storage Temperature	-30℃ to +70℃
Vibration rating	GB∕T 2423.56-2023 standard (random 5G vibraion)
Dimension	76(W) x 77(H) x 66(D) mm
HD video signal cable (XC-HD0004-B-15M)
interface	4 pin aviation connector (male-female)
length	15 meters
